200kg~300kg小型薯片生产线

In the small potato chips plant, the 200kg and 300kg per hour production lines are the output that customers often purchase. These two types of output are in the middle of the semi-automatic line. Its output is larger than that of 50kg and 100kg, and the investment cost is not much worse than theirs. Therefore, the 200~300kg/h potato chip line is the best choice for potato chip manufacturers who want large output and small investment.

200kg/h small potato chips plant configuration

Item	Picture	Details

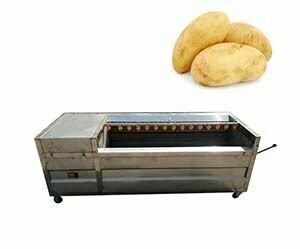

1. Washing and peeling machine		Model: TZ-800 Capacity : 1000kg/h Dimension: 1780*850*800 mm Voltage: 380v,50hz,3 phase Power: 1.5kw   Weight : 180kg One batch:2 minutes Material: 304 stainless steel Rollers: 9 pcs Machine with wheels, sprays, water tray.
2. cutter machine		Model:TZ-600 Size:950*800*950mm Capacity:600kg/h Voltage: 380v,50hz,3 phase Weight: 110kg Power:1.1kw Material:304 Stainless steel Knife: thickness 1mm chips or according to client needs
3. Blanching machine		Model:TZ-1500 Power:48kw Voltage:380v,50hz,3 phase weight: 180kg  size :2200*700*950mm Heating type : electric Capacity:200kg/h Material: 304 stainless steel One batch:1-2 minutes
4. Dehydrator		Model: TZ-400 Capacity :300kg/h Size :1000*500*700mm Voltage:380v,50hz, 3 phase Power :1.5kw   Weight : 360kg Material: 304 stainless steel Time: 1-3 minutes Function: After blanching the potato, the surface has water, it can’t directly fry, so it needs to use this machine to remove water. You can set the time by yourself

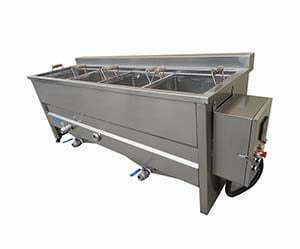

5. Frying machine		Model:TZ-1500 Power:48kw Voltage:380v,50hz,3 phase Weight: 180kg  Size :2200*700*950mm Heating type : electric Capacity:200kg/h Material: 304 stainless steel

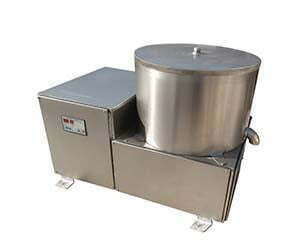

6. Deoiling machine		Model: TZ-400 Capacity :300kg/h Dimension :1000*500*700mm Voltage:380v,50hz, 3 phase Power: 1.5kw  Weight : 360kg Material: 304 stainless steel F

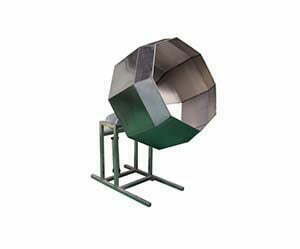

7. Seasoning machine		Model:TZ--800 Weight: 130kg Power : 1.5kw Capacity :300kg/h Voltage:380v,50hz, 3 phase Material: 304 stainless steel Simple design, cost-saving, but does not affect production function and efficiency.

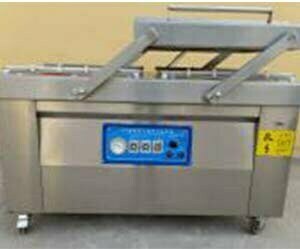

8. Nitrogen-filled packing machine		Model: TZ-300 Size: 1200*600*850mm Capacity:300kg/h Power:1.5kw Voltage: 380v/220v, 50hz, 3 phase Weight:260kg Notes: the machine has a nitrogen function, you just need to equip the nitrogen tank by yourself.

The difference between 200kg and 300kg small potato chip lines

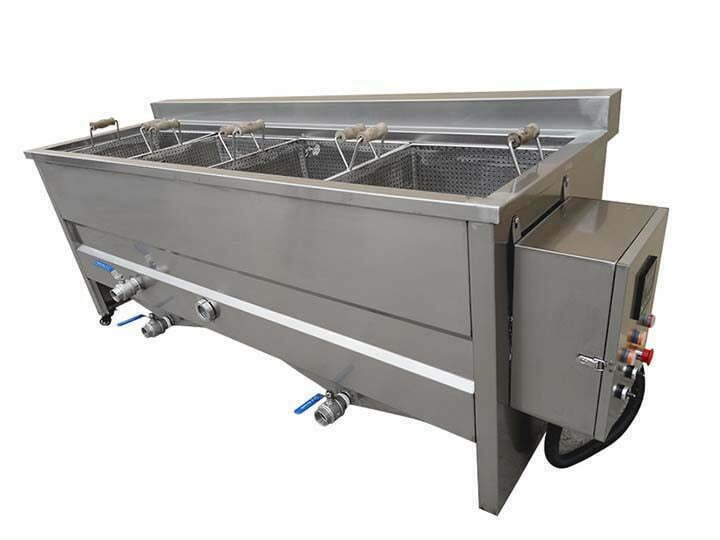

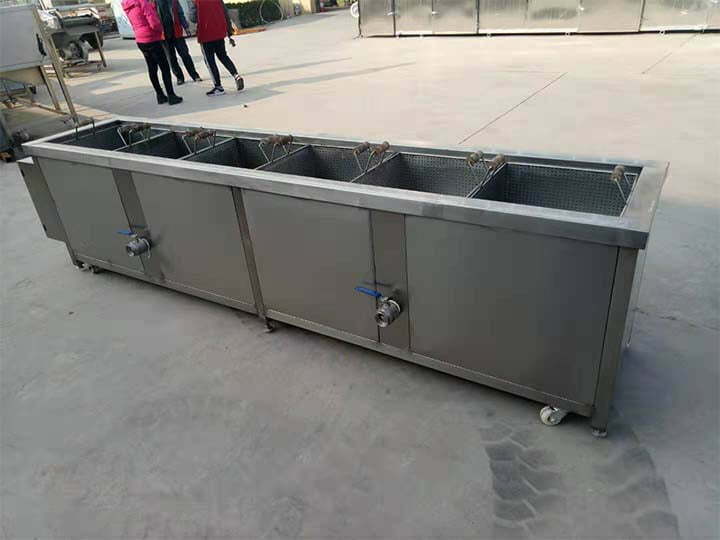

For the semi-automatic potato chip line, the machine configuration inside is similar. It's just that the output of the blanching machine and the fryer is different. In the small potato chips plant, the blanching machine and the fryer are frame fryers. The output of this fryer depends on the number of their boxes. The more blanching frames or frying frames, the greater the output. One box can carry 50kg of potatoes. Therefore, the 200kg/h potato chip line equips with 4 frames of blanching machine and fryer. The 300kg/h potato chip line equips with 6 frames of blanching machine and frying machine.
